Water control is very important in irrigation systems, dams, wastewater plants, and industrial projects. To manage water flow safely and efficiently, one of the most commonly used devices is a sluice gate manufacturer.

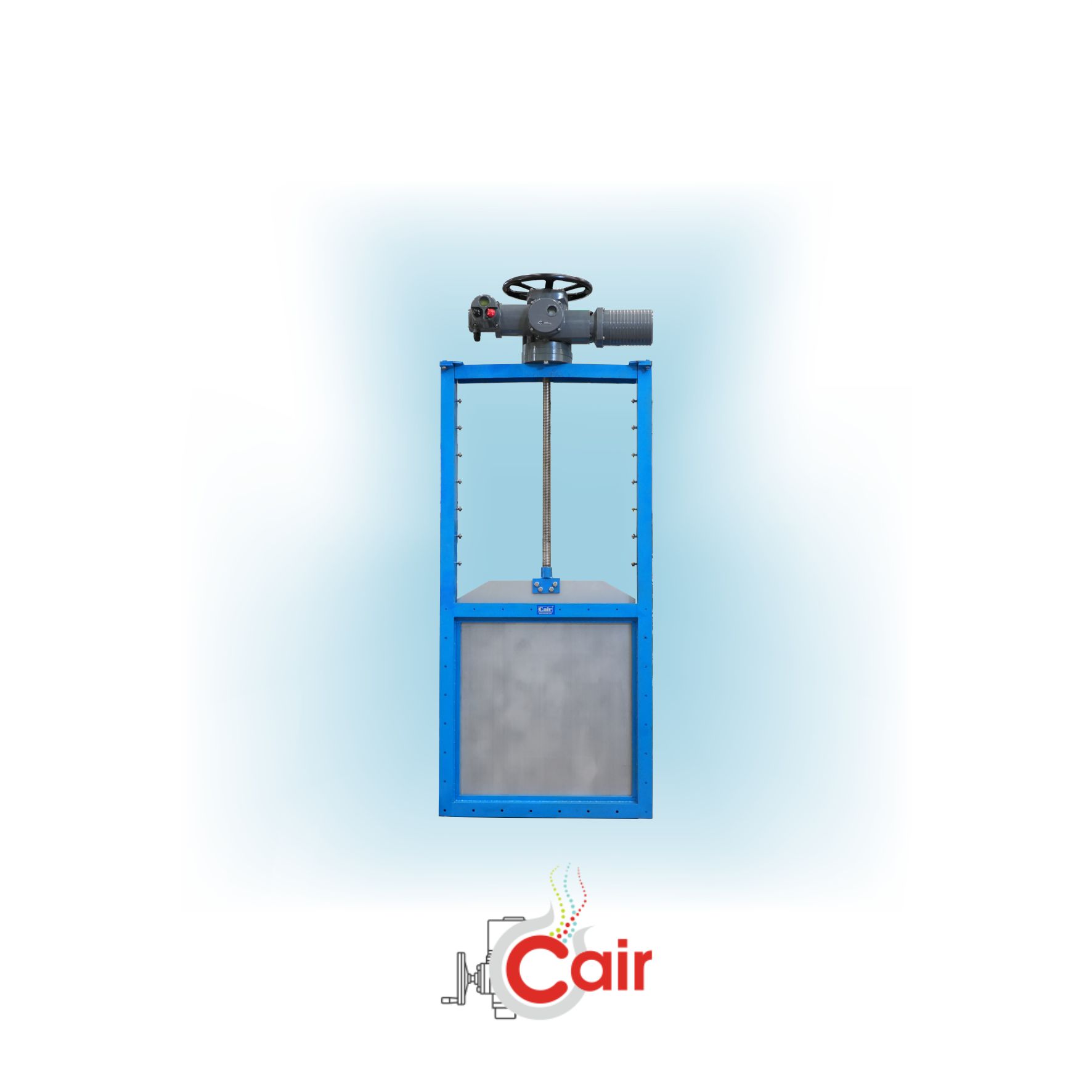

A sluice gate is a sliding gate that is used to start, stop, or control the flow of water and other liquids. It is mainly installed in open channels, canals, and sometimes in pipeline systems. The design is simple, strong, and built for long service life.

Working Principle of a Sluice Gate

The working of a sluice gate is easy to understand.

The gate has a sliding plate that moves up and down inside a strong frame. This movement is controlled by a threaded stem connected to a handwheel or actuator.

• When the handwheel is turned, the stem rotates.
• The stem lifts the gate plate upward.
• As the gate opens, water flows through the opening.
• When the gate is lowered, it blocks the flow completely.

Because of this simple sliding mechanism, sluice gates are reliable, durable, and require low maintenance. They are mainly used for isolation (on/off control) rather than precise flow regulation.

Industrial Applications of Sluice Gates

Sluice gates are widely used in different industries and infrastructure projects, such as:

• Irrigation canals for water distribution
• Water treatment plants
• Wastewater and sewage systems
• Dams and reservoirs
• Stormwater drainage systems
• Industrial cooling and process water systems

Their strong construction makes them suitable for handling large volumes of water under different pressure conditions.

Technical Specifications of Sluice Gate

Our sluice gates are designed to meet various project requirements and site conditions. Each gate can be customized based on size, material, pressure, and temperature needs.

Below are the standard technical details explained in simple terms:

Size

The size of the sluice gate is manufactured as per project requirement.

Whether you need a small gate for a compact system or a large gate for heavy water flow in canals or treatment plants, customization is available.

Material of Construction (MOC)

We offer different material options to ensure strength and durability:

• IS Grade Steel – Suitable for standard water applications
• Mild Steel (MS) – Strong, durable, and cost-effective
• Stainless Steel (SS) – Corrosion-resistant and ideal for harsh or chemical environments

The right material is selected based on the type of fluid and working conditions.

Trim

The trim refers to the internal working parts of the sluice gate.

It can be provided as per requirement, depending on the pressure rating and application type.

Pressure Rating

The sluice gate can be designed to handle pressure as per system requirement.

It is suitable for low, medium, or high-pressure applications depending on the project design.

Temperature Range

The operating temperature range is -20°C to 180°C, depending on the selected material of construction.

This makes the sluice gate suitable for both cold and moderately high-temperature environments.

End Connection

Sluice gates are available in:

• Single Channel Type
• Double Channel Type

These connection options allow easy installation in different channel and flow systems.

Conclusion

A sluice gate is a simple yet powerful solution for controlling water flow. Its easy working mechanism, strong construction, and flexible specifications make it ideal for irrigation, wastewater, dams, and industrial systems.

With customizable size, material options (IS Grade, MS, SS), flexible trim, pressure ratings as required, temperature handling from -20°C to 180°C, and single or double channel connections, sluice gates provide reliable and long-lasting performance.
